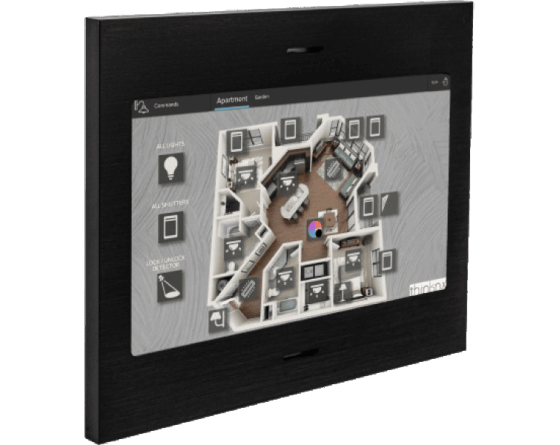

Thinknx Envision 10 Touch server 10" KNX ENVISION10_20
10" touch server with unlimited number of clients + Temperature, humidity and ambient light sensors
+KNX/IP_router IR Trans + Report up to 20MB + Voice Control + IoT Licence + VAI2 (2-gate access control)
Sold without frame, without flush-mounted box, without power supply.
For mounting on flush-mounted box Btcino 16206
For mounting with frame.
For power supply 24VDC 60W.
For upgrades Sonos, Philips HUE, .....
Envision Touch Server is an all-in-one touch server that combines the comfort of a touch user interface with the powerful functionality of a ThinKnx server, all in a single device.
With Envision, the end user is able to control all installed devices, thanks to a comfortable touch screen and low power consumption.
The main feature of the Envision touch server is the bi-directional interaction between the KNX protocol and all other supported devices, such as Philips Hue, MyHome BTicino, Z-Wave, Modbus and Lutron.
With its integrated sensor card, speaker and microphone, Envision can be used as a doorphone and thermostat at the same time.
Thanks to the integration of third-party systems, Envision can also be used as an indoor station for the anti-theft system.
A single device for multiple interactions.
Upgrades for Envision :
UPSW1.1 Security upgrade (on request)
UPSW1.3 Doorcom+SIP server upgrade
UPSW2.2 Lutron upgrade (on request)
UPSW2.4 MyHome upgrade(on request)
UPSW2.6 Audio/Video upgrade(on request)
UPSW2.7 Gateway Mitsubishi upgrade (on request)
UPSW2.8 Velux upgrade (on request)
UPSW4CLOUD Data storage - Extended Report over 20MB
UPSWENVISION_W3 3-Years warranty extension for Envision_20
UPZWAVE Z-Wave upgrade including USB Dongle (on request)
VAI3-10 Access control upgrade for 3 to 10 gates integrated with KNX keypads, Z-Wave
keypads, Modbus, any reader with Wiegand technology(on request)
VAI11-50 Access control upgrade for 11 to 50 gates integrated with KNX keypads, Z-Wave
keypads, Modbus, any reader with Wiegand technology (on request)
VAI51+ Access control upgrade for over 51 gates integrated with KNX keypads, Z-Wave
keypads, Modbus, any reader with Wiegand technology (on request)
UPSWH0-10 Guest Room Management System integration with FIAS protocol - up to 10 rooms (on request)
UPSWH11-50 Guest Room Management System integration with FIAS protocol - from 11 to 50 (on request)
rooms
UPSWH51+ Guest Room Management System integration with FIAS protocol - over 50 rooms (on request)
